| Powerful 5x100W RGBL+Outer Circle RGB Effect Bar Light |
| Model：EC-WB5 |
 |

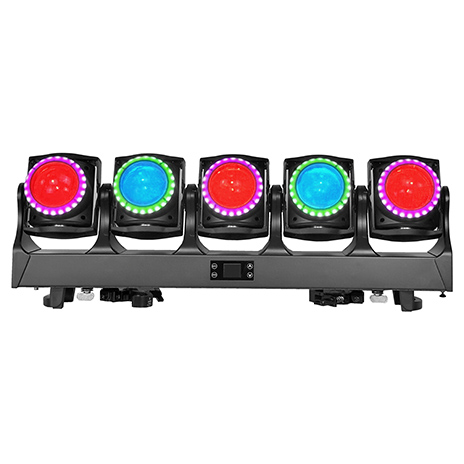

WB5 features an innovative design and appearance designed to take your visual experience to new heights. It has a powerful 5*120W LEDs as its main light source, supplemented by 120*0.5W RGB LEDs in the outer ring, combining high performance and versatility.
The fixture is equipped with five independently controlled leds with smooth X-axis and Y-axis movement, providing endless possibilities for the lighting designer's artistic creation.
The beam angle is 3°-30° and the spot angle is 4°-35°. The fast linear focus function makes it produce a sharp and saturated beam effect, ensuring that your visual effects are presented with enough vitality.
|
|
|
|
| Photometrics
|
| Light Source:
|
Main Light: 5 x 120W LEDs
Outer Circle: 120 x 0.5W RGB LEDs
|
|
Total Lumen Output of Fixture:
|
13,000 lumens
|
|
Beam Angles:
|
|
|
Field Angles：
|
4°-35°
|
| Key Features
|
|
Automatic Pan/Tilt position correction
|
|
Resolution:
|
16 bit
|
|
Outstanding strobe effects with variable speed
|
|
Variable light adjustment from 0-100% dimming
|
|
Outstanding color mixing effects
|
|
Outstanding color macro effects
|
|
Linear focusing structure
|
|
Electrical and Connectors
|
| Control
|
|
Display:
|
LCD display
|
| Control Mode:
|
DMX512, auto-running, master-slave, sound-actived,
with RDM function.
|
| DMX Channels:
|
21CH/41CH /71CH/75CH/85CH/170CH
|
Built-in Programs:
|
Yes
|
|
Pan & Tilt:
|
Pan Movement: 59° Tilt Movement: 221°
|
|
|
|
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
935W
|
| I/O
|
| Power connections:
|
Waterproof power connector in/out (True1 type)
|
| Data connections:
|
3-pin XLR
|
| Housing
|
| Material:
|
Aluminum+plastic
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
Fan heat dissipation
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
|
| Weight:
|
26.6KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
