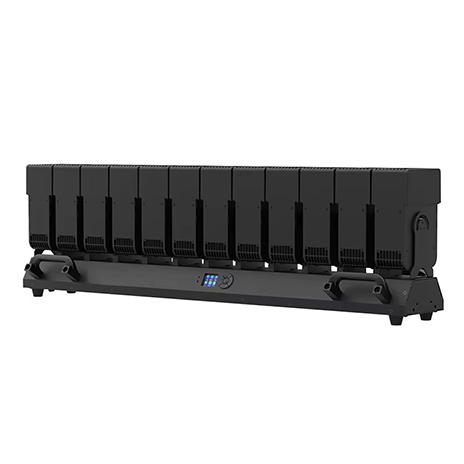

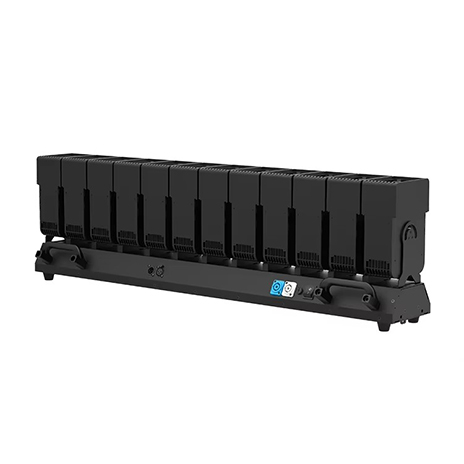

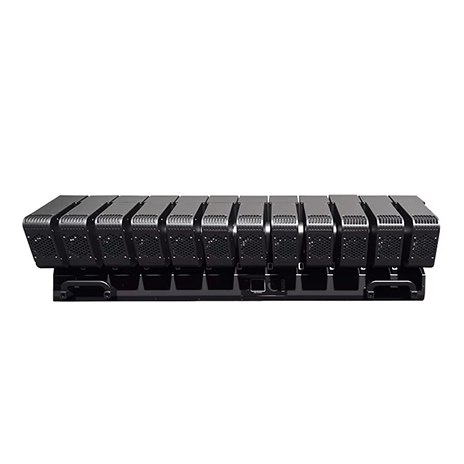

| 12x60W RGBW effect wave bar light |
| Model：EC-M1260Z |
 |
Powerful 12x60W RGBW LED moving lights with DMX512 control, voice control, and RDM function for precise stage effects. Features include single swing, staining, beam modes, 32-bit linear dimming, and a robust 50,000-hour lifespan. Compact design with IP20 rating ensures reliable performance in various settings like parties, clubs, and shows.
|
|
|
|
| Photometrics
|
| Light Source:
|
12 x 60W RGBW 4 in 1 LED
|
|
Zoom Range:
|
5.7° to 36.3°
|
| Key Features
|
|
Features:
|
Single swing+staining+beam
|
|
Strobe frequency:
|
1-30HZ
|
| Dimmer:
|
32-bit 0~100% linear dimming
|
| Control
|
| Control Mode:
|
DMX512, auto-running, master-slave, sound-actived,
with RDM function.
|
| DMX Channels:
|
CH7.CH14.CH16.CH35.CH60.CH73.CH82.CH84
|
Built-in Programs:
|
Yes
|
|
Vertical :
|
270 degrees(16Bit )
|
|
|
|
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
800W
|
| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
Metal, Black
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
Fan heat dissipation
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
1007X165X300mm
|
| Weight:
|
26.5KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
