| 48X20W 6-IN-1 RGBALC LED city color |
| Model：EC-W4820 |
 |
|
High-power 48x20W RGBALC 6in1 LEDs deliver vibrant colors and excellent dimming, with a 50,000-hour lifespan and IP65 rating for outdoor use. Equipped with Seetronic IP connectors, optional LumenRadio W-DMX, and adjustable lens options (25° 35° 45°). Certified with CE and RoHS for compliance with EU safety standards, ensuring market access and reliability.
|
|
|
|
| Photometrics
|
| Light Source:
|
48X20W 6-IN-1 RGBALC LEDs
|
Spot Angle :
|
25° /35° /45° Lens optional
|
| Key Features
|
|
Magnetic diffuser / frost filter (optional)

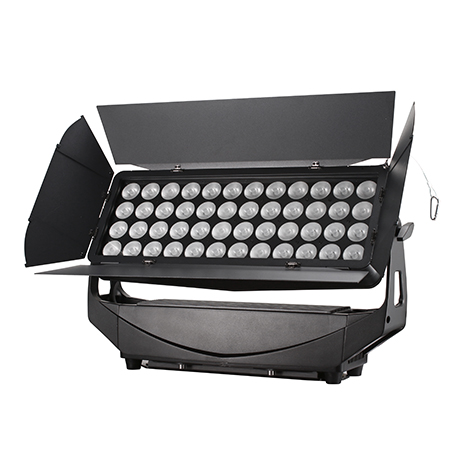

Magnetic 8 way barndoors (optional)
|
| Strobe:
|
0-25Hz high speed shutter/strobe effect with variable speed
|
| Dimming:
|
0-100% Smooth linear LED dimming
Smoother dimming mode available
|
| Control
|
| Control mode:
|
DMX512, RDM, Master-slave, Auto, W-DMX (optional)
|
| DMX Channels:
|
10/14/17/21 DMX channels
|
Built-in Programs:
|
Yes
|
| Display:
|
1.77" TFT LCD display
4 control touch buttons
180°Reversible for LCD display
|
| Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
1100W
|
| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
Aluminium, steel, plastic PC/ASA, rubber, Lens PE and tempered glass front
|
| IP rating:
|
IP65
|
| Thermal
|
| Cooling:
|
Active, Forced Air, Temperature regulated
Over temperature protection management
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
570×150×320 mm
|
| Weight:
|
10.6 KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
