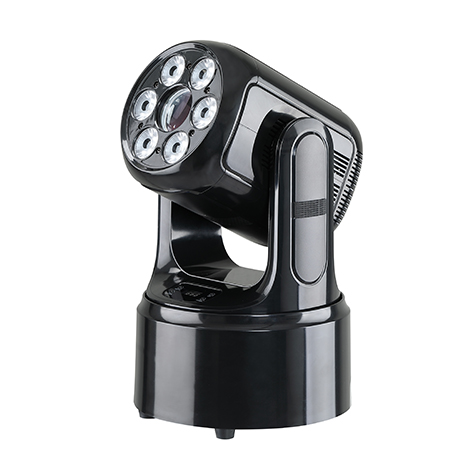

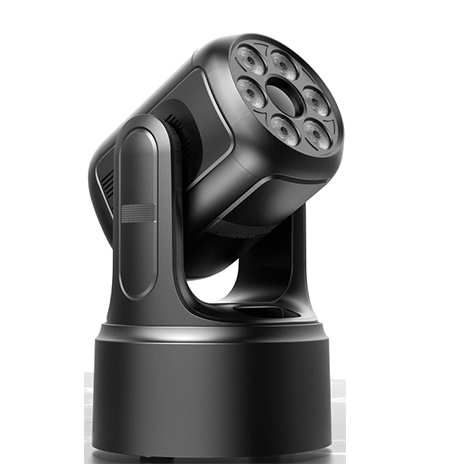

| 200W LED gobo wash moving head light |
| Model：EC-F3 |
 |
|
200W wash gobo light, with 12W*6pcs high-brightness wash LEDs on the periphery and 120W gobo LEDs, four-prism wide-angle coverage, is suitable for business party venues with a light luxury style and a ceiling height of 4 meters.
|
|
|
|
| Photometrics
|
| Light Source:
|
1*120W LED+6*12W RGBW 4-in-1 LED
|
| LED color temperature:
|
8000K
|
| Key Features
|
Color mixing system:
|
RGBW color mixing system
|
| Stroboscopic:
|
1-30 times/SEC, electronic stroboscopic and random stroboscopic
|
| Dimming:
|
High resolution dimmer 0~100%
|
Color plate:
|
8+ 1, 8 fixed colors + white
|
Fixed pattern plate:
|
8+1 fixed pattern, two-way dithering painting, water effect
|
Prism:
|
Prism, prism rotation
|
| Control
|
| Control Mode:
|
DMX512,Auto Run, Master/Slave, Sound active
|
| DMX Channels:
|
16CH/24CH
|
Built-in Programs:
|
Yes
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
200W
|
| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
Aluminum
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
fan cooling
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
225*225*395mm
|
| Weight:
|
7.0 KGS
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
