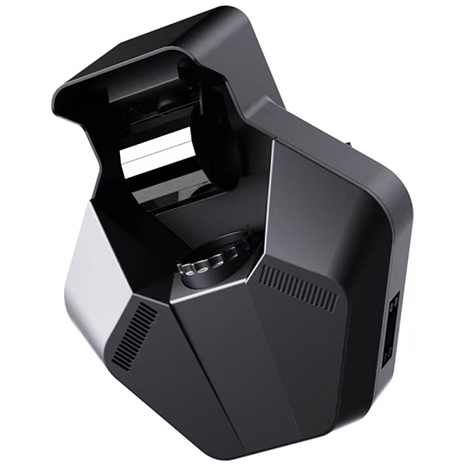

| 100W Flower - roller scanning light |
| Model：EC-FS100 |
 |
|
It has a design like "Batman", and the structure is simple and neat. Unique light source design, the use of 80W LED optics, with a variety of patterns and rotating drum refraction angle, to create a beautiful dynamic effect.
|
|
|
|
| Photometrics
|
| Light Source:
|
1*80W white LED
|
Scanning Angle:
|
horizontal 110 degrees, vertical 90 degrees
|
| Key Features
|
| Color temperature:
|
8000-8500K
|
| Color palette:
|
8+ 1,8 fixed colors + white
|
| Fixed pattern plate:
|
7 fixed pattern (with a fixed color) +1 water pattern + white circle, two-way dithering painting, water effect
|
| Control
|
| Control Mode:
|
DMX512, sound control, auto-running, manual, master-slave
|
|
|
Built-in Programs:
|
Yes
|
|
|
| Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
100W
|
| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
|
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Single package size:
|
312*282*160mm
|
|
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
