| 10x50W warm white+50W amber LED bar light |
| Model：EC-W1050 |
 |
Horizontal hanging with Omega brackets
Horizontal installation on the floor with tilt bracket fast locks

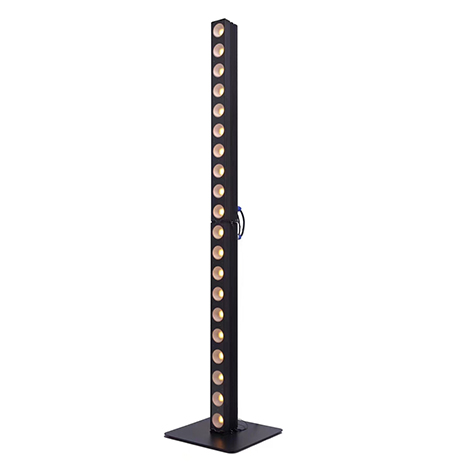

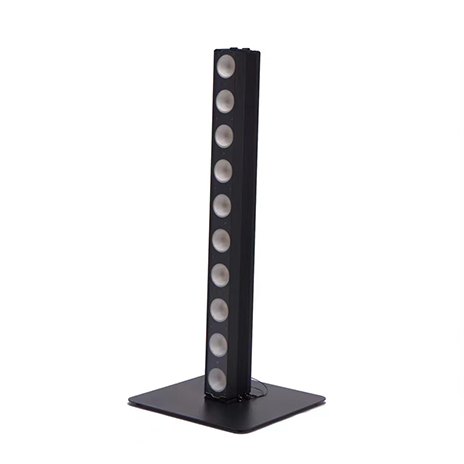

Vertical installation on the floor with a base plate
Hanging vertically “dropped” with a vertical adapter
Split Joint: structural connection with 2 pieces quick release pins
|
|
|
|
| Photometrics
|
| Light Source:
|
10PCS 50W Amber+2800K 2IN1 COB LED
|
| Beam Angle:
|
68.9mm 12/24/36/60 degree optional
|
| Key Features
|
| CTO:
|
2800K-1800K
|
| Strobe:
|
Variable speed (1-20HZ)
|
| Dimming:
|
High resolution dimmer 0~100%
|
| Control
|
| Control Mode:
|
DMX512,Auto Run, Master/Slave, Sound active
|
| DMX Channels:
|
4/7/14/25/1/2/5/10/20CH
|
Built-in Programs:
|
Yes
|
| Display:
|
LED display
|
| Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
500W
|
| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
Aluminum
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
fan cooling
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
951×160×191mm
|
| Weight:
|
5.8 KGS
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
