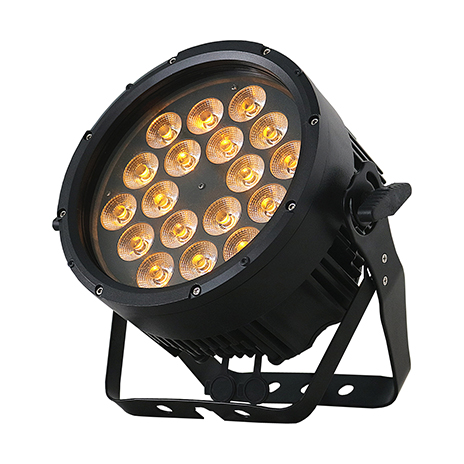

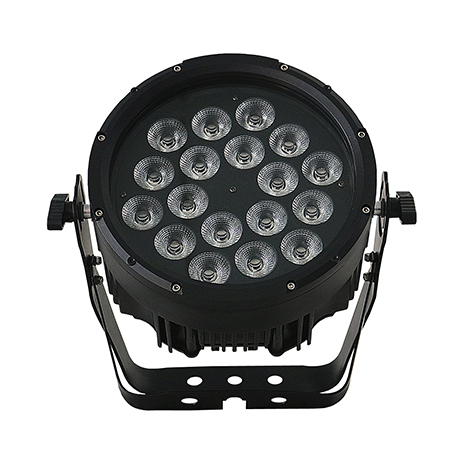

| 18*10W/18*12W/18*15W Waterproof Par Light |
| Model：EC-WP1810 |
 |
Sturdy die-cast aluminium body conceived for Long-time durability and demanding applications
Frontal tempered glass panel
Pressure and temperature balance through GORE membrane vents
Double hangingg braket sutable for safe hanging and for floor positioning
|
|
|
|
| Photometrics
|
| Light Source:
|
18*10W(4in1)/18*12W(5in1)/18*15W(6in1)high power LED
|
| Beam Angle:
|
25°
|
| Key Features
|
| Color Mixing:
|
4 in 1 RGBW/5 in 1 RGBWA/6 in 1 RGBWA-UV
|
| Strobe:
|
0-30Hz
|
| Dimming:
|
0-100% linear dimming
|
| Control
|
| Control Mode:
|
DMX, Master/Slave, Auto, Sound-active
|
| DMX Channels:
|
4/8CH or 5/9CH or 6/10CH
|
Built-in Programs:
|
Yes
|
|
|
| Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
180W(4in1)/220W(5in1)/270W(6in1)
|
| I/O
|
| Power connections:
|
PowerCon in/out
|
| Data connections:
|
DMX signal line input/output
|
| Housing
|
| Material:
|
die-cast aluminium
|
| IP rating:
|
IP65
|
| Thermal
|
| Cooling:
|
Convection
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
268 x 157.5 x 298 mm
|
| Weight:
|
5.5kg
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
