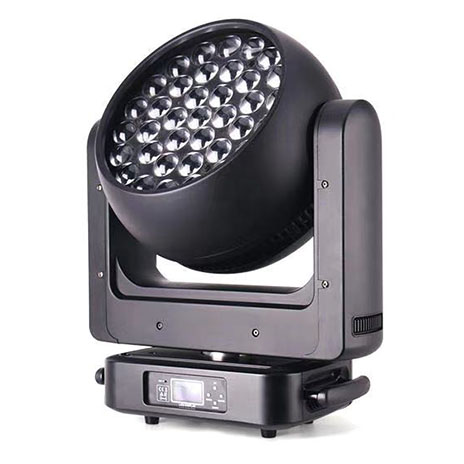

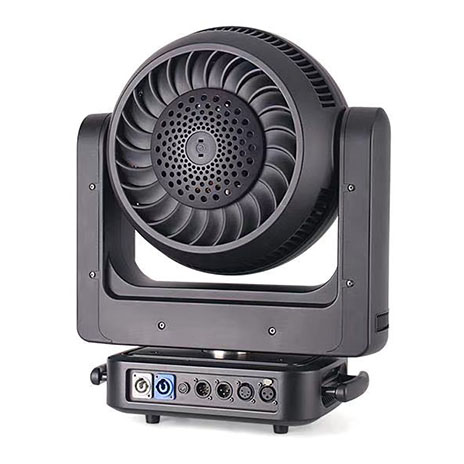

| 37x25W LED zoom wash moving head light |
| Model：EC-WM3725 |
 |
|
Unique appearance design, high brightness 25W RGBW 4 in 1 LED, outstanding color macro effect, with circle control effect, variable strobe effects, it's widely used in stages,night clubs,entertainment halls,disco,hotels,shops....
|
|
|
|
| Photometrics
|
| Light Source:
|
37 × 25W Osram RGBW 4in1 LED
|
Zoom Angle:
|
10-60°
|
|
|
|
POWER
|
|
Mains
|
100-240 VAC, 50/60Hz
|
|
Consumption
|
850W
|
|
Power connections:
|
PowerCon in/out
|
|
KEY FEATURES
|
|
Pan movement:
|
540°
|
|
Tilt movement:
|
270°
|
|
Outstanding color macro effect
|
|
|
Variable strobe effects
|
|
Dimming:
|
0--100% linear dimming
|
|
CONTROL
|
|
|
Blue white LCD display for easy navigation
|
|
DMX channels:
|
15/27 channels
|
| Connection method:
|
DMX512 input and output / power input and output
|
|
|
| Housing
|
| Material:
|
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
fan cooling
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
410 × 200 × 465mm
|
N.W.:
|
17Kgs
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
