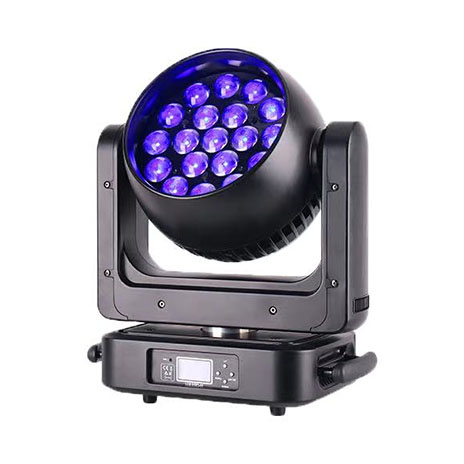

| 19PCSx25W ZOOM wash LED MOVING HEAD LIGHT |
| Model：EC-MZ1925 |
 |
|
Unique appearance design, high brightness 4 in 1 LED, can mix a variety of wonderful colors, with circle control effect, simple and convenient operation, it's widely used in stages, bars, clubs, shows...
|
|
|
|
| Photometrics
|
| Light Source:
|
19*25W RGBW 4in1 LED
|
Zoom Angle:
|
10-60°
|
|
|
|
POWER
|
|
Mains
|
100-240 VAC, 50/60Hz
|
|
Consumption
|
500W
|
|
Power connections:
|
PowerCon in/out
|
|
KEY FEATURES
|
|
Pan movement:
|
540°
|
|
Tilt movement:
|
270°
|
|
Large built-in illumination displays the main/cream mode
|
|
|
Blue LCD screen, navigation is more convenient
|
|
Dimming:
|
0--100% linear dimming
|
|
CONTROL
|
|
Control mode:
|
Master/Slave, DMX512
|
|
DMX channels:
|
15/27 Channels
|

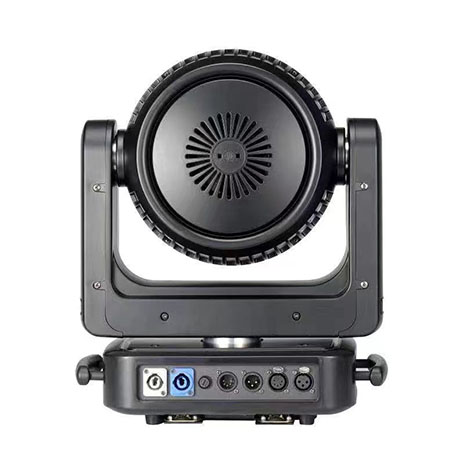

| Connection method:
|
DMX512 input and output / power input and output
|
|
|
| Housing
|
| Material:
|
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
fan cooling
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
350*200*400mm
|
N.W.:
|
9.5KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
