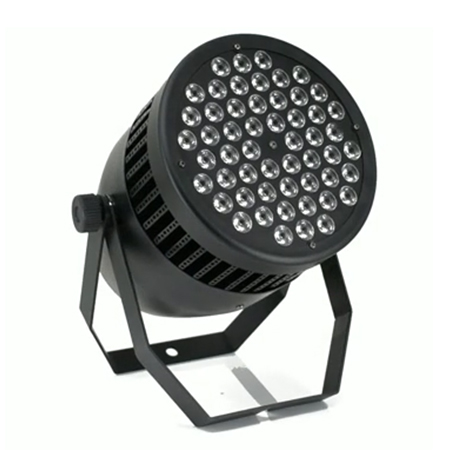

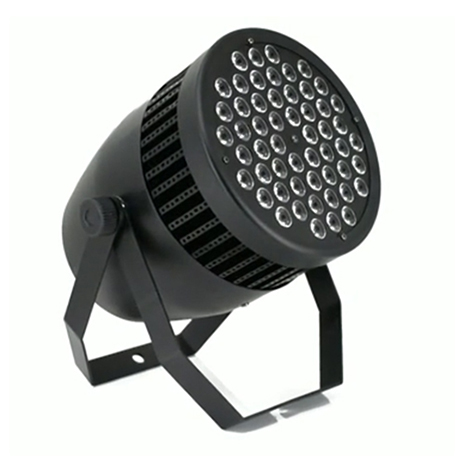

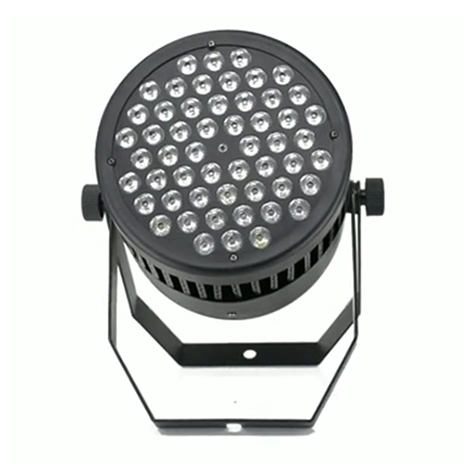

| 54 pcs 3W RGBW pure mute LED PAR LIGHT |
| Model：EC-P054 |
 |
Latest linear dimming technology, no flicker output
Unique structure design, excellent natural heat dissipation effect
Multi-angle optional, more flexible for spread light
Double hangers design can be used on the ground
DMX control
Use no fan, pure mute
|
|
|
|
| Photometrics
|
| Light Source:
|
3W(R18+G12+B12+W12) LED
|
| Beam Angle:
|
25°(15°, 45° optional)
|
| Key Features
|
| Color Mixing:
|
R18+G12+B12+W12
|
| Strobe:
|
0-25 Hz
|
| Dimming:
|
0-100% linear dimming
|
| Control
|
| Protocol:
|
DMX512
|
| DMX Channels:
|
6/10
|
Built-in Programs:
|
Yes
|
| Display:
|
4 Digital LED display figures
|
| Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
150W
|
| I/O
|

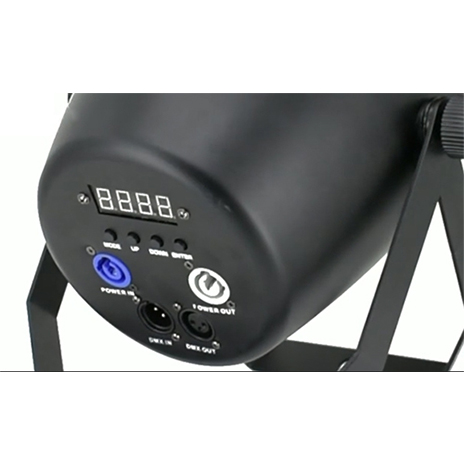

| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
Casting Aluminum
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
Convection
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
226 x 285 x 445 mm
|
| Weight:
|
5.5 KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
