| 200W warm white/cold white/WW+CW LED soft panel light |
| Model：EC-PL200B |
 |
|
Unique design
There is no flicker or jitter in dimming
CRI: ≥ 95
Stable performance, temperature control detection and protection function, advanced cooling system design, natural heat dissipation, ultra-quiet can adapt to photography, television and other occasions with very strict lighting requirements
|
|
|
|
| Photometrics
|
| Light Source:
|

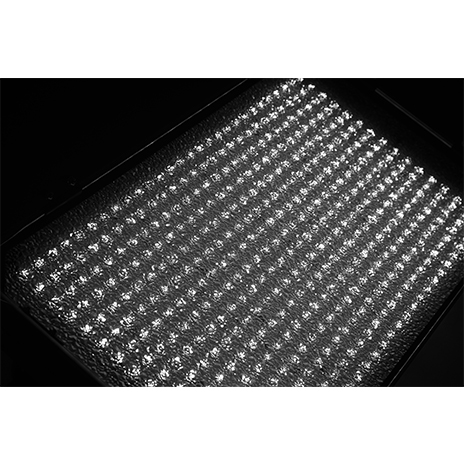

448×0.5W 5730SMD warm white/cold white/224×0.5W 5730SMD warm white+224×0.5W 5730SMD cold white
|
| Key Features
|
|
CRI:
|
≥95
|
| Color Mixing:
|
CW/WW/CW+WW
|
Color temperature:
|
3200-6000K
|
| Stroboscopic:
|
1-25/S independent electronic stroboscopic
|
| Dimming:
|
0-100 linear dimming, smooth dimming without flicker
|
| Control
|
| Control mode:
|
DMX512, 3-core interface
|
| DMX Channels:
|
1/2CH; 2/6CH
|
Built-in Programs:
|
Yes
|
| Display:
|
LCD display + 4 soft keys
|
| Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
200W
|
| I/O
|

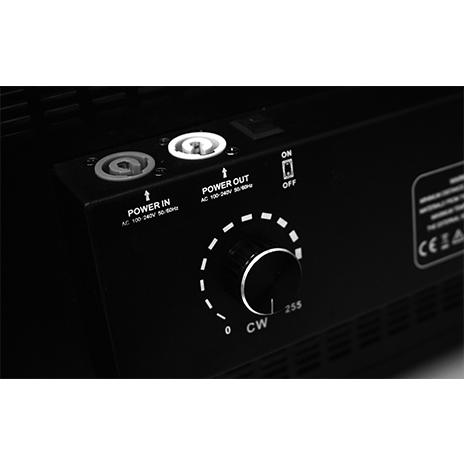

| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
A3+AL
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
Convection
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
584x 352 x 113 mm
|
| Weight:
|
7.0 KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
